Chassis & Mounts

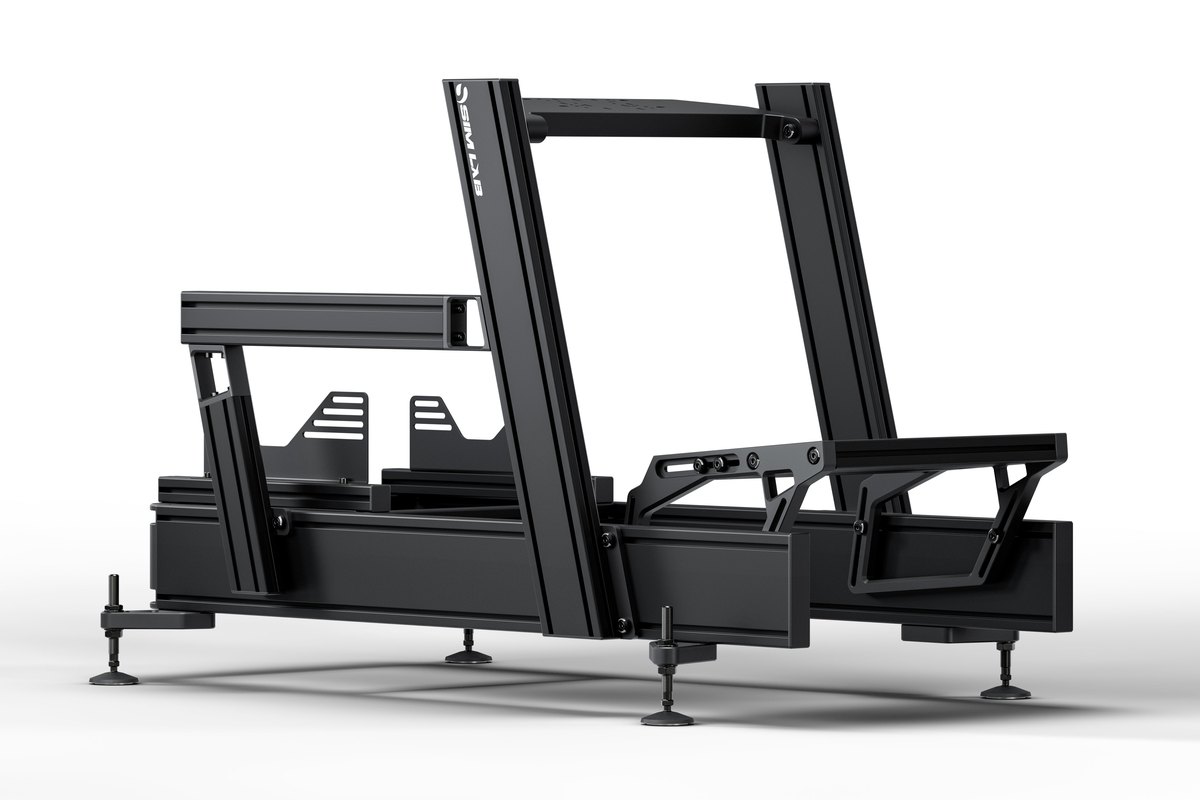

Bare aluminum profile rig: Sim-Lab P1X Pro

  • What: the frame. wheelbase, pedals, seat all bolt to it
  • Why: flex eats detail. a flexy chassis wastes a good wheelbase
  • When: after a direct drive base and a load cell brake. more torque and a stiffer brake both need it

Varieties

flowchart LR
    A[Desk clamp<br>$0] --> B[Wheel stand<br>$180 to $280] --> C[Foldable seat<br>$180 to $300] --> D[Steel tube cockpit<br>$250 to $600] --> E[Aluminum profile<br>$350 to $1,000 + seat]
Type Price Wheelbase limit Good Bad
Desk clamp $0, in the box 2 to 5 Nm, 8 Nm on a heavy desk Free, no space Chair rolls, pedals slide, setup every time
Wheel stand $180 to $280 ~8 Nm Folds, use your own chair Chair still moves
Foldable seat $180 to $300 ~8 Nm in practice Real seating position, closet storage Pedal end flexes under hard braking, no upgrade path
Steel tube cockpit $250 to $600 ~10 Nm Seat included, tidy enough for a living room Limited adjustment, proprietary add-ons, replaced later
Budget aluminum profile $350 to $450, no seat 10 to 16 Nm Cheapest rigid option Thin brackets, quality varies
Mainstream aluminum profile $450 to $600, no seat 16 Nm+ Zero flex, fully adjustable, anything bolts on Industrial look, heavy, extras add up
Heavy aluminum profile $730 to $1,000, no seat 30 Nm+, motion Ready for anything Overkill for a beginner
DIY $50 to $500 Varies Cheap, custom Your time
  • Aluminum profile is the standard. Even the cheapest is rigid enough for 5 to 8 Nm
  • Most recommended on r/simracing: Sim-Lab, RigMetal
  • Foldables and stands work with direct drive at low torque. Flex shows with a stiff load cell brake or more torque

What matters

  • Nothing moves when you brake hard. Pedal end first, wheel deck second
  • Wheel deck and pedal deck that fit your gear's bolt pattern
  • Adjustability: seat, pedal and wheel distance and angle
  • Where the monitor goes
  • Whether it has to pack away. Pack-away rigs only get used if setup takes about a minute
  • Build quality: a tight, square 4080 rig beats a loose bigger one

Ignore

  • 40160 vs 4080 profile, below ~20 Nm. Not a performance upgrade for a beginner
  • Maker torque ratings on foldables. They say what it survives, not what stays stiff
  • Looks
  • Brand accessories. Profile rigs take anything with a T-nut

Profile sizes

Profile Beam, mm Good for
4080 40×80 Up to ~16 Nm. Enough for any first rig
40120 / 40160 40×120 / 40×160 20 Nm+, very stiff pedals, motion
  • The price gap is small. Overbuying slightly is fine, not needed

Real cost of a profile rig

Part Typical
Rig $350 to $600
Seat $250 to $450, or a junkyard car seat $50 to $75
Seat brackets, slider $40 to $120
Monitor stand $200 to $360
Shipping $30 to $250
  • A "$499 rig" is $900 to $1,100 sat in and driving
  • Arrives in 2 to 3 heavy boxes. 3 to 6 hours to build
  • Popular rigs are often back-ordered. Check stock first

Desk fixes

Problem Fix
Chair rolls back Caster cups, or rear wheels in old shoes
Chair swivels Dining chair, or strap chair to desk leg
Pedals slide Against the wall, or screwed to a board the chair sits on
Desk shakes Push to wall, lower force feedback
Clamp slips Wood shim under the desk edge

Mounts and extras

Mount Notes
Monitor, integrated Bolts to the rig. Compact. Shakes with a strong wheel
Monitor, freestanding Separate stand. No shake
Desk arms Not for triples. They sag
Shifter, handbrake, button box Side mounts bolt to any profile rig
Casters Lockable only, or the rig rolls under braking

Motion

  • Actuators go under the rig, so the rig must be rigid: heavy aluminum profile
  • Affordable 3DOF arrived in 2026: Moza HMA150, $2,999 for four actuators
  • Leave room: cables, monitor stand, walls
  • Last purchase, or never
  • Full detail, 3DOF vs 6DOF, belt tensioners: Motion & Immersion

By tier

Tier Mount
0 Desk clamp
1 Foldable seat or wheel stand
2 Steel tube cockpit, or jump to profile
3 Mainstream aluminum profile
4 Heavy aluminum profile
5 Heavy profile on motion

Used

  • Aluminum rigs: best used buy in the hobby. Local pickup. Often sell for foldable-seat money
  • Check: 40-series profile, all brackets and T-nuts, deck hole patterns
  • Foldables: seams, hinges, bent tubes
  • Avoid: wood or PVC rigs priced like aluminum

Where to buy

Type Product Price Buy
Wheel stand NLR Wheel Stand Lite 2.0 $179 Next Level Racing
Wheel stand GT Omega APEX $220 GT Omega
Wheel stand NLR Wheel Stand 2.0 $279 Next Level Racing
Foldable seat NLR GTLite Air $179 Next Level Racing
Foldable seat NLR GTLite $199 Next Level Racing
Foldable seat NLR GTLite Pro $299 Next Level Racing
Foldable seat Playseat Challenge X $300 Logitech G
Steel tube cockpit GT Omega ART $250 GT Omega
Steel tube cockpit GT Omega Titan $410 GT Omega
Steel tube cockpit NLR GTRacer 2.0, seat included $499 Next Level Racing
Steel tube cockpit Playseat Trophy ~$600 Logitech
Budget profile Trak Racer TR40S $349 Trak Racer
Budget profile RigMetal Basic $409 RigMetal
Budget profile No-name 4080 rigs $250 to $450 Amazon search
Mainstream profile Sim-Lab GT1 Evo $449 Sim-Lab US
Mainstream profile Trak Racer TR80S $499 Trak Racer
Mainstream profile RigMetal Plus $539 RigMetal
Mainstream profile ASR 3 ~$550 Advanced SimRacing
Heavy profile Trak Racer TR160 V5 $730 Trak Racer
Heavy profile Sim-Lab P1X Pro $789 Sim-Lab US
Heavy profile Sim-Lab P1X Ultimate $999 Sim-Lab US
Monitor stand, single NLR freestanding single $199 Next Level Racing
Monitor stand, single Trak Racer cockpit-mounted single $229 Trak Racer
Monitor stand, triple NLR freestanding triple, up to 3× 43" $299 Next Level Racing
Monitor stand, triple Trak Racer freestanding triple, 22" to 32" $359 Trak Racer
Casters Sim-Lab caster set $30 Sim-Lab US
  • Prices checked 2026-10-09 at the maker's own US store. Shipping and tax extra
  • Out of stock when checked: Sim-Lab GT1 Evo, RigMetal Basic
